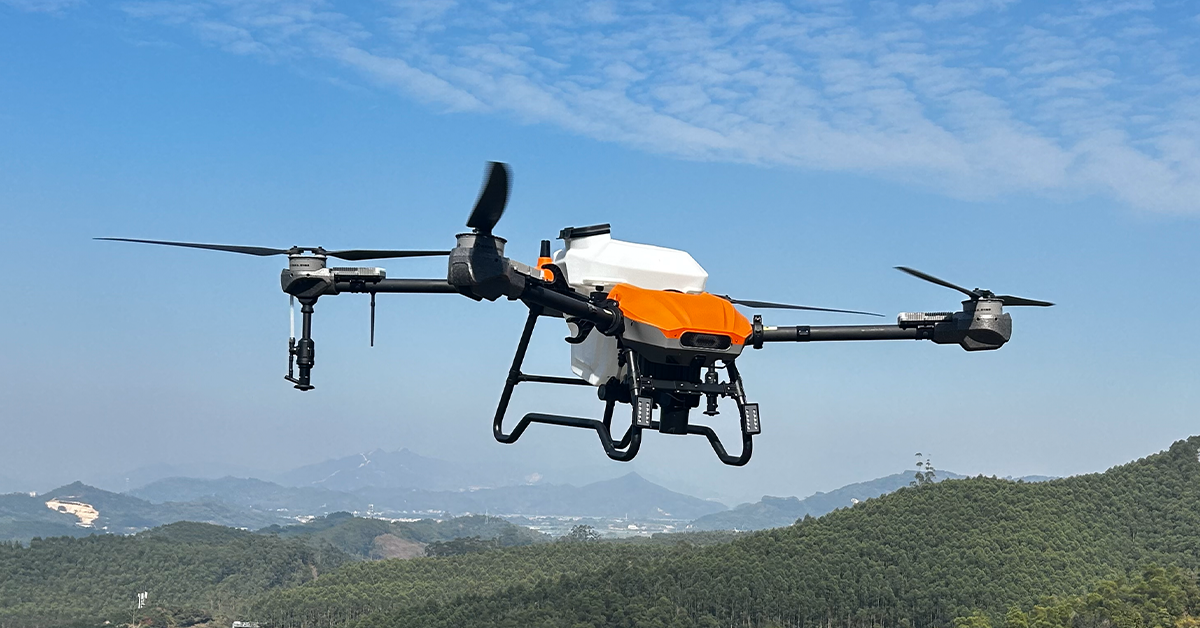

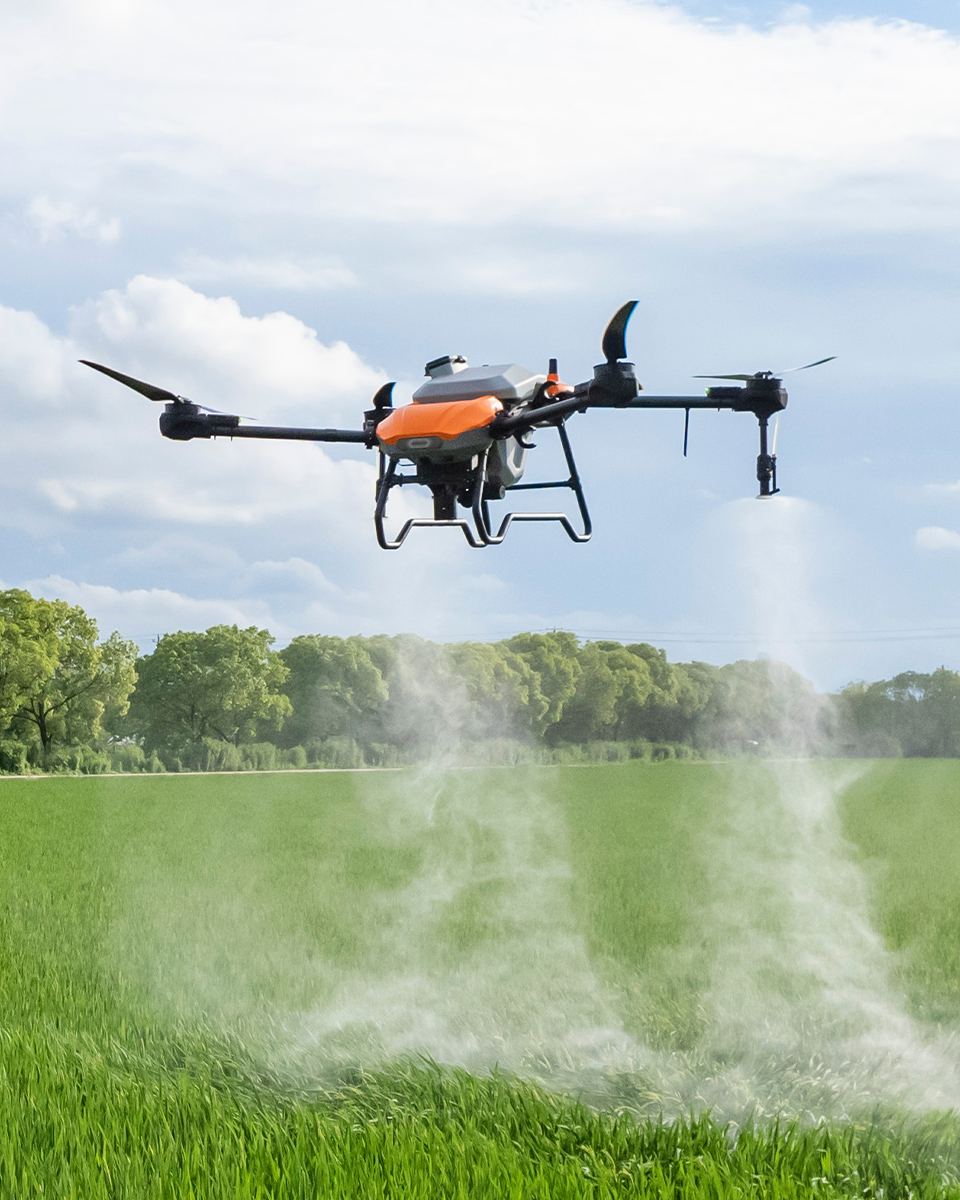

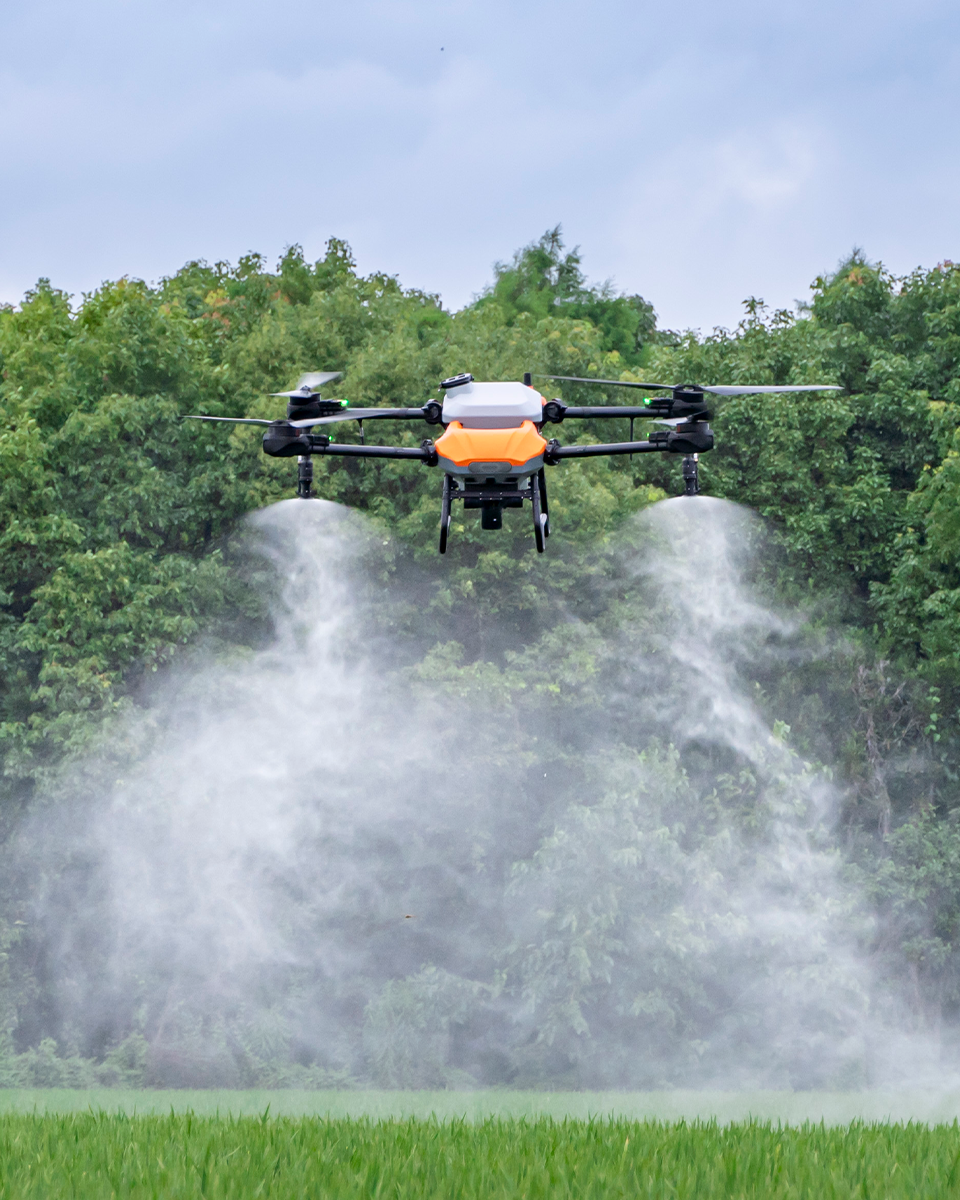

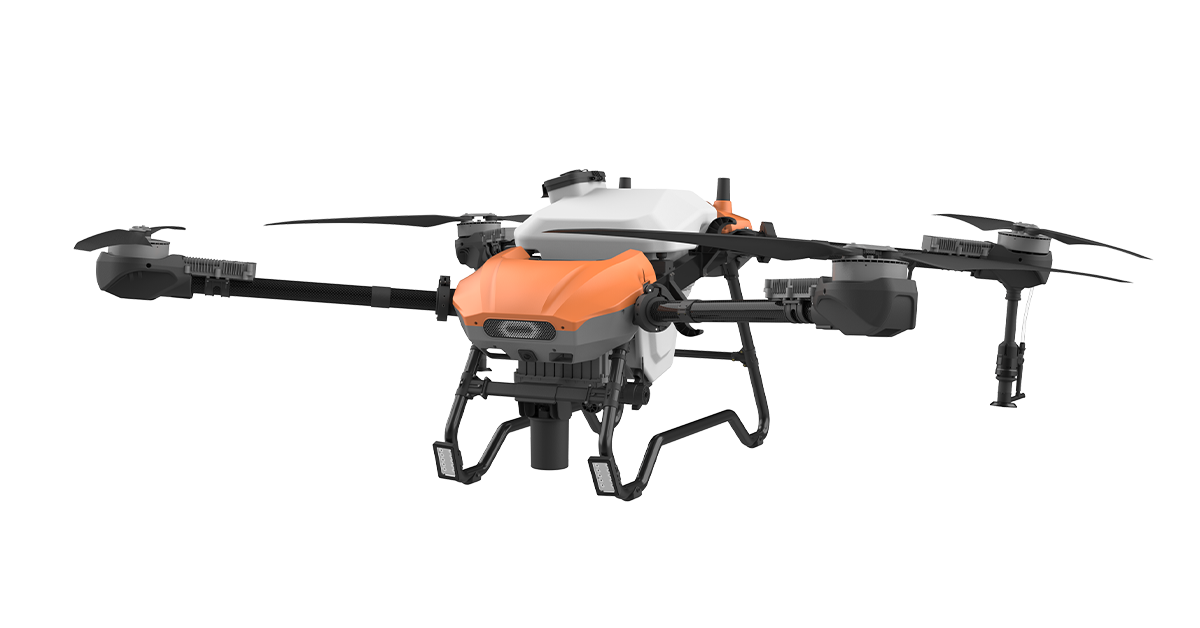

Vector AGR HD580 (Drone Only)

Name: Vector AGR HD580 (Drone Only)
Brand: Ventor Agr
Price: 27500.00 USD
Availability: InStock

(4.5) • 2 reviews

18.5 Gal (70L) Capacity

tbd Coverage

Two centrifugal 7.92 Gal ( 30L) /min , Four centrifugal 10.56 Gal (40L) /min Max Flow Rate

18 m/s or 40.3mph Max Speed

up to 39 ft (up to 12 meters) Max Swath

Active Phased Array Omnidirectional Radar Obstacle Avoidance Safety

18.5 Gal (70L) Capacity

tbd Coverage

Two centrifugal 7.92 Gal ( 30L) /min , Four centrifugal 10.56 Gal (40L) /min Max Flow Rate

18 m/s or 40.3mph Max Speed

up to 39 ft (up to 12 meters) Max Swath

Active Phased Array Omnidirectional Radar Obstacle Avoidance Safety

Vector AGR HD580 (Drone Only)

(4.5) • 2 reviews

Full Price

$27,500.00

Pay in One Payment

Description

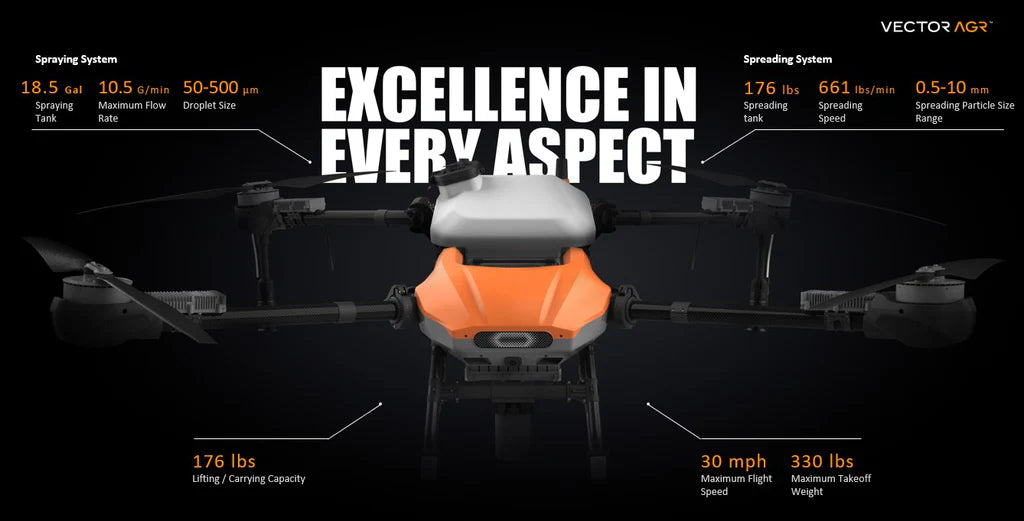

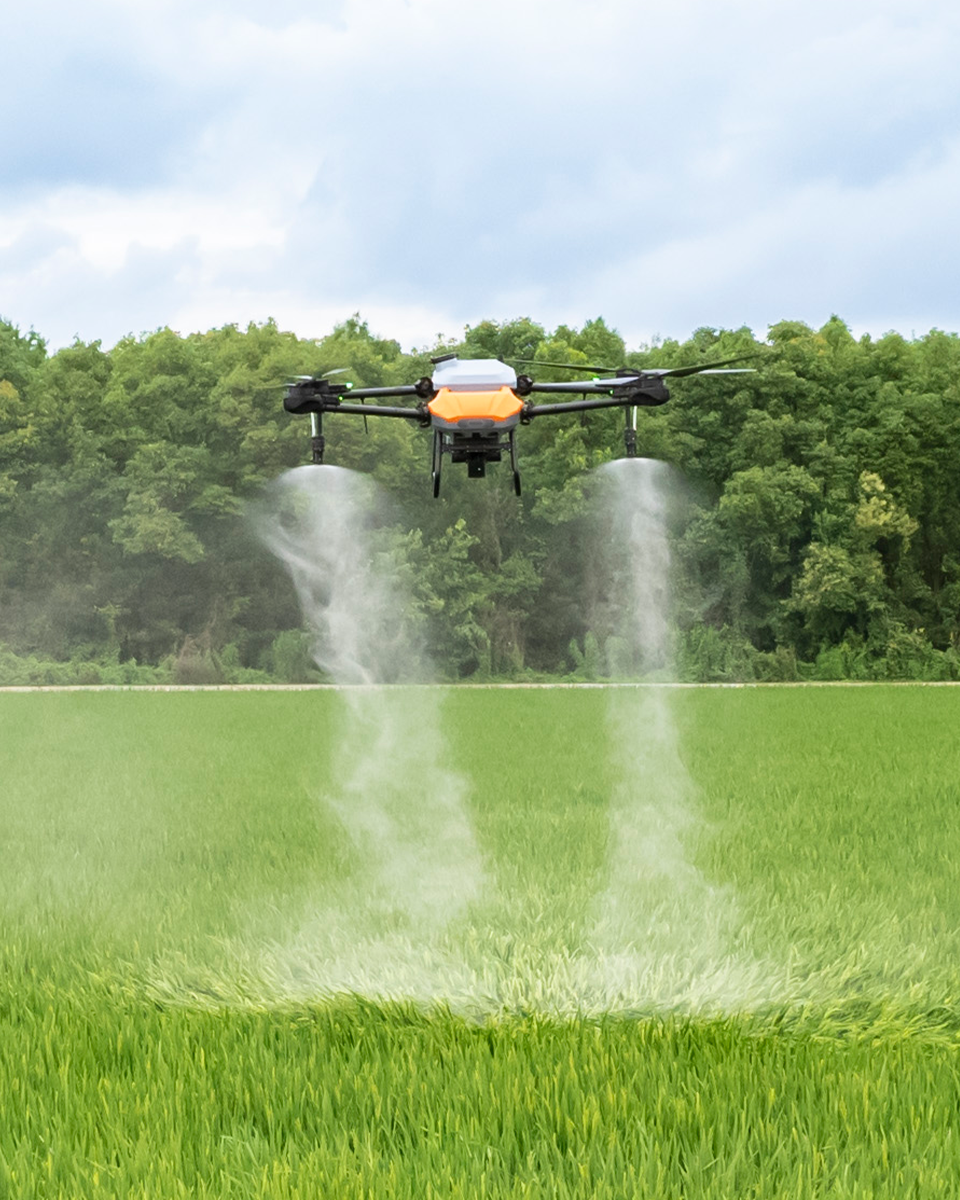

Introducing America's next spray drone, the Vector HD580. Vector brings the ease of use you love with the field-tough hardware you need.

Awesome Capacity and High Flow Rate | Productive & Easy to Use | All-Day RC | Rapid Battery Cooling
- 18.5 Gal (70L) Spraying Tank, 10.56 Gal (40L) /min Maximum flow rate
- 176.37 lbs (80kg) spreading tank, 661.38 lbs (300kg) /min spreading speed
- 167.55 lbs (76kg) Maximum thrust of single motor set 18 m/s or 40.3mph Maximum Flight Speed
- 30,000mAh Battery capacity, 9,000W Volt Smart Charger, fully charged in 10 minutes

Essentials

HD580 Smart Battery

$2,500.00

HD580 Smart Charger

$1,999.00

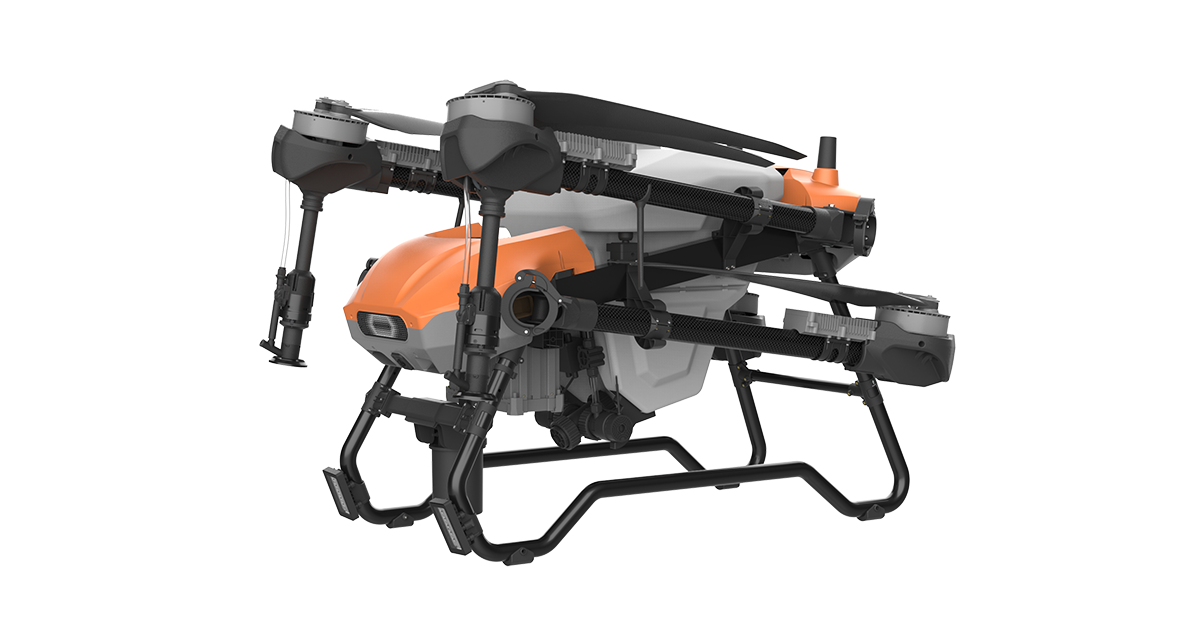

Included: 1x HD580 Spray Drone with Remote

Note: To build your own kit, start by selecting products listed above under "Essentials." This is a modular drone system—additional accessories can be added based on your specific needs. To customize your setup, choose the appropriate components from the "Accessories" section listed below.

Shipping & Return Policy

We take every precaution to ensure your order arrives safely, but in rare cases, damage may occur during shipping. The return process depends on the shipping method, and following the correct steps is essential to qualify for a replacement. From documenting damage to handling claims, our guide covers everything you need to know to protect your purchase.

For details on returns, freight shipments, and battery policies, be sure to review our full policy.

Warranty

We stand by the quality of our products and work closely with manufacturers to ensure you receive the best possible support. While some items may come with a manufacturer warranty, terms vary by product. If you receive a defective item, our team will guide you through the warranty process and coordinate with the manufacturer for repairs or replacements. Please note that Raptor does not issue refunds for damaged or defective items.

For full details on warranty coverage and the return process please see our warranty policy.

Quantity:

12-month limited warranty

Drone Protection Plans

Hey there! Quick question, are you still just relying on basic drone insurance? That’s a bit like bringing an umbrella to a hurricane! Protect your drone (and your sanity) with Raptor’s Drone Protection Plan. Seriously, it’s the backup you didn’t know you needed.

FAA

Our consulting services help you get the FAA spraying drone approvals you’ll need… and we do it fast!

See Products

Vector AGR HD580 (Drone Only)

$27,500.00

Accessories

HD580 RTK Survey

$499.00

Product Features

Overview

18.5 Gal (70L)

Capacity

tbd

Coverage

Two centrifugal 7.92 Gal ( 30L) /min , Four centrifugal 10.56 Gal (40L) /min

Max Flow Rate

Specifications

Flight Specications

Model - 3WWDZ-U70A

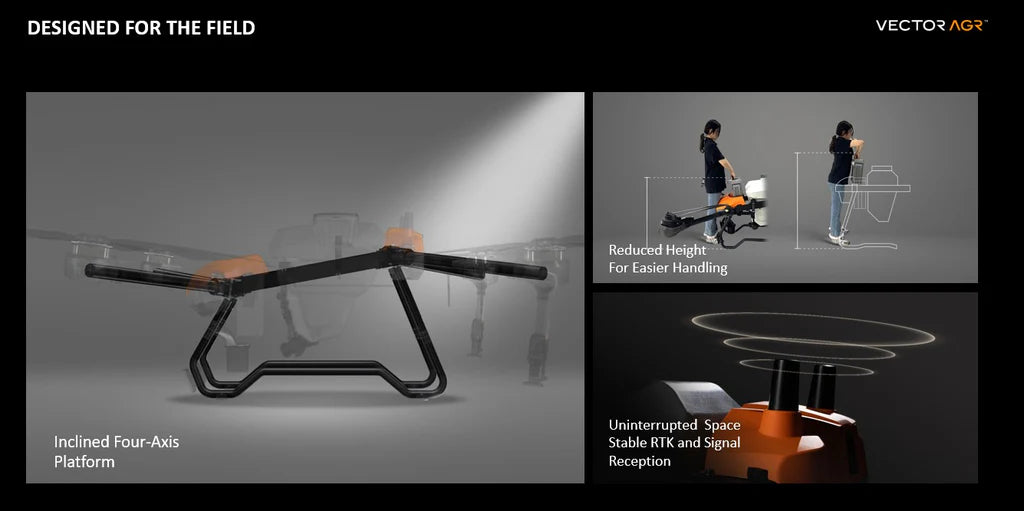

Layout - 4-axis

Dimensions - 3305mm x 3577mm x 850mm (boom deployed,
blades

deployed), 1270mm x 880mm x 880mm (boom folded)

Maximum wheelbase - 2628mm

Maximum take-off weight - Spraying 308.64 lbs
Spreading 330.69 lbs)

Empty mass (including battery) - 149.91 lbs (68kg)

Tank capacity - 18.5 Gal (70L)

Seed tank capacity - 26.41 Gal (100L) max. 176.37
lbs(80kg)

RTK Positioning - Horizontal ±10 cm, Vertical ±10 cm

Hovering time with no load - 16.5 min

Hovering time with full load - 6.5 min

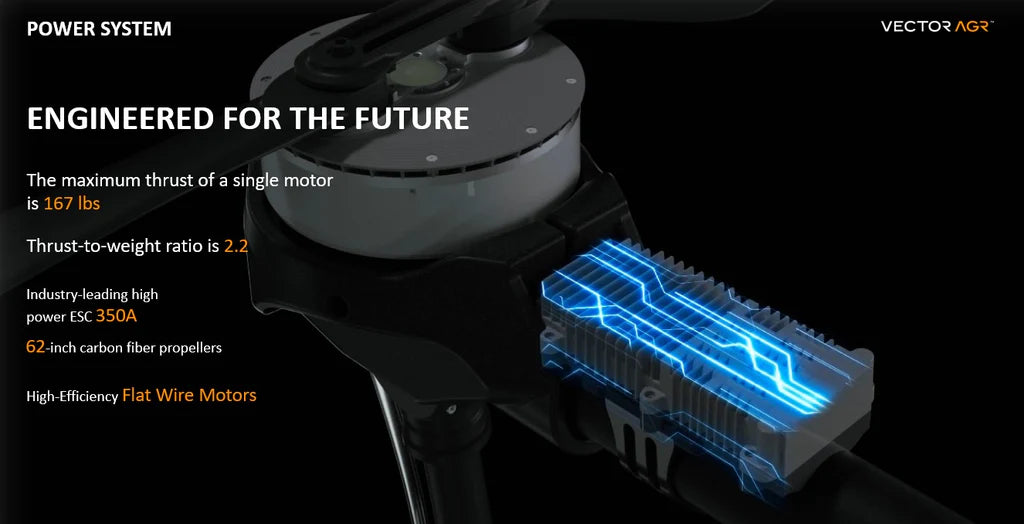

Power System

Motor KV value - 46(r/min)-V

Motor size - 140*34mm

Motor rated power - 4650w*4

Rated speed - 2000r/min

Propeller blade diameter - 1575mm(62in)

Number of propeller Blade – 4

Propeller blade Material - Carbon Fiber

Energy System-Smart Charger

Output power - 9000W (generator direct connection) / 2000W (utility direct connection)

Weight - 38.80 lbs (17.6kg)

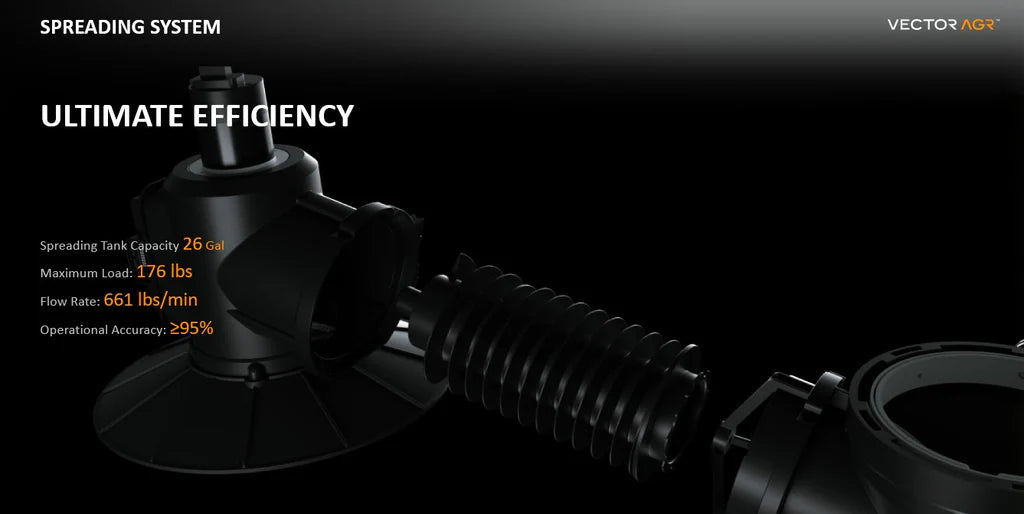

Operating System - Spreading System

Spreading tank volume - 26.41 Gal (100L)

Maximum load - 176.37 lbs (80kg)

Feeding method – Winches

Support particle diameter - 0.5~10mm dry solid particles

Auger size - large, medium and small

Max. rotating speed - 1100r/min

Spreading width - 4~10m

Maximum pushing volume - 661.38 lbs (300kg) /min

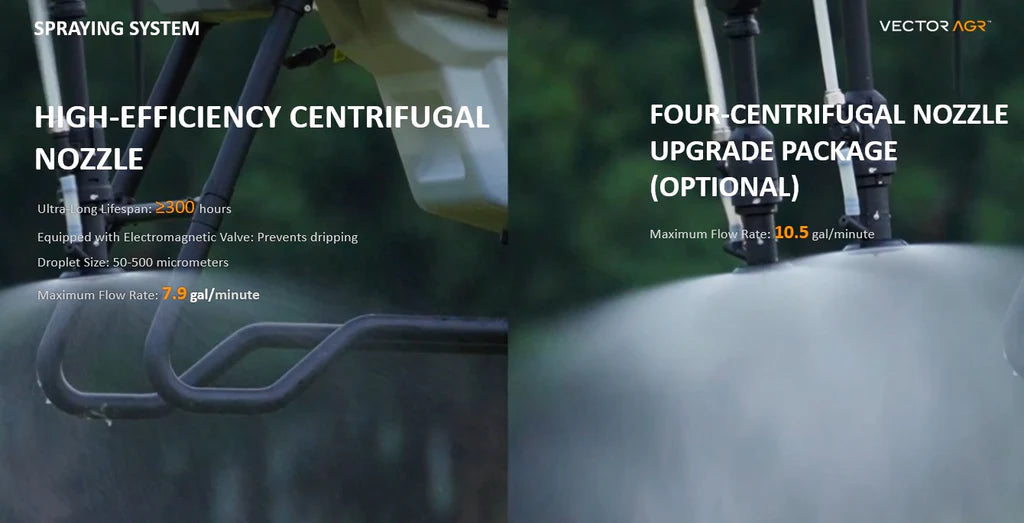

Operation System - Spraying System

Tank volume - 18.5 Gal (70L)

Nozzle type - Centrifugal nozzle

Total number of nozzles - Centrifugal nozzle 2/4

Maximum spraying width - 12 meters (operating height 3.5 meters ± 0.5 meters flight speed 5m/s)

Atomizing particle size - Centrifugal nozzle 50um~500umb

Pump type - Magnetic impeller pump

Number of water pumps – 2

Maximum flow rate - Two centrifugal 7.92 Gal ( 30L) /min , four centrifugal 10.56 Gal (40L) /min

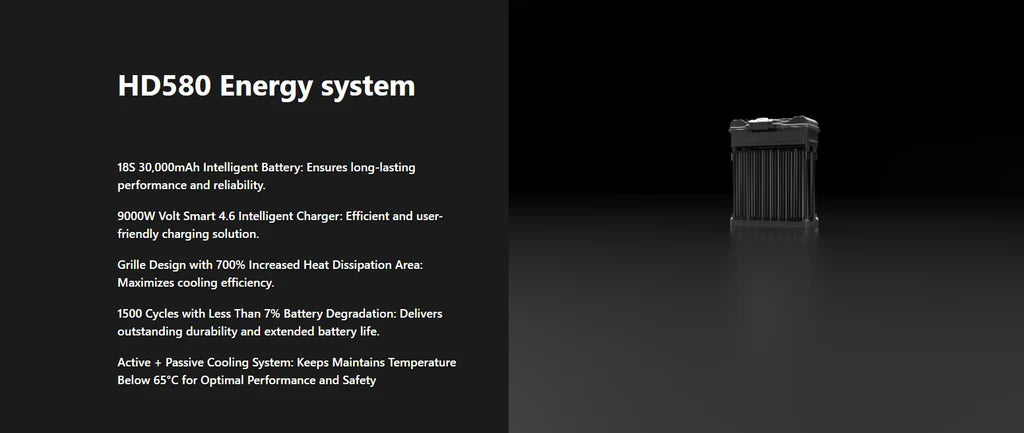

Energy System - Intelligent Battery

Battery Energy - 2025Wh

Single cell voltage - 3.75V

Number of cells - 18

Battery Weight - 32.18 lbs. (14.6kg)

Battery installation method - Quick Plug Battery

Fast charging time - 25%-95% approx. 10 minutes and 25 seconds

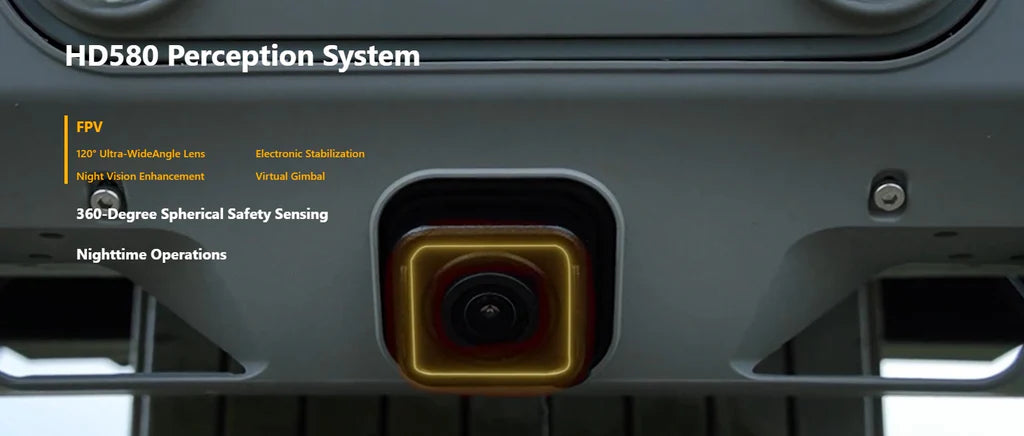

Sensing System-Radar

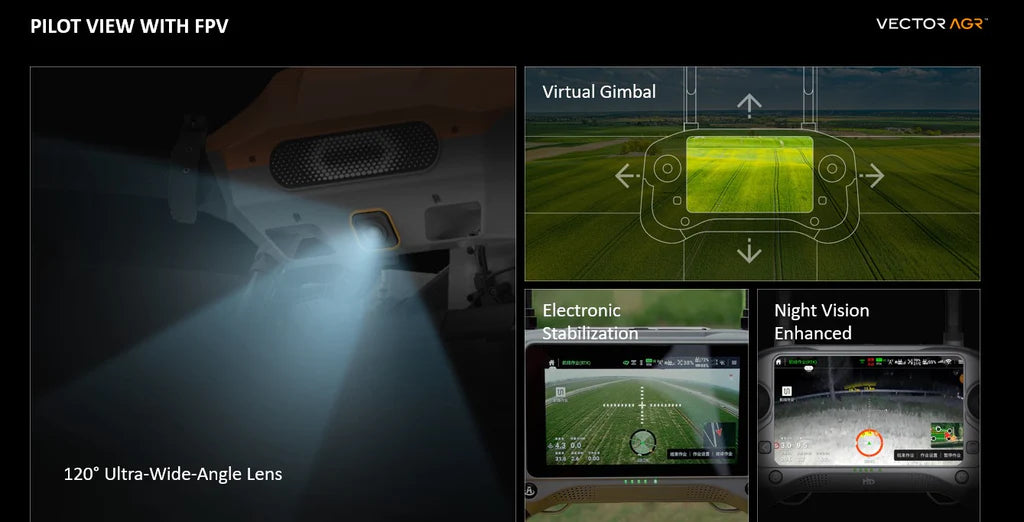

Front monocular virtual - Gimbal camera

Resolution - 1920*1080

Effective pixels - 400W

Field of view - Horizontal 80°, Vertical 120

Night Vision - Support

Number of searchlights - 2

Searchlight power - 75W*2

Sensing System-Radar

Height range - Height measurement range: 1~60m

Height range: 0.5~30m

Obstacle - Obstacle avoidance distance (horizontal): 1~50m

Avoidance Range - Viewing Angle Range(3db):50°horizontal, 10°vertical

Use conditions: the relative altitude of the aircraft flight is higher than 2m and the speed <= 7m/s

Safety distance: 2.5m (the distance between the paddle tip and the obstacle after the craft brakesand hovers stably)

Comparison

Vector AGR HD580 (Drone Only)

More Info

18.5 Gal (70L)

Capacity

tbd

Coverage

Two centrifugal 7.92 Gal ( 30L) /min , Four centrifugal 10.56 Gal (40L) /min

Max Flow Rate

	Vector AGR HD580 (Drone Only)

Frequently Asked Questions

For buying a drone, I heard there's a new / bigger model coming out, should I wait?

You could! Depends on when you want to get operational - new drones require new FAA approvals and that can take an entire season. The current tech is absolutely incredible, you'll get your money out of it either way.

How long does it take to charge the batteries?

Fast charging from 25%-95% takes approximately 10 minutes and 25 seconds with a compatible smart charger (e.g., 9000W Volt Smart Charger)

How do I order replacement propellers and batteries?

You can order propellers, batteries, and other essential parts directly from our website. If you need help finding the right ones, our team is happy to assist.

Does it have cameras for navigation or safety?

"Yes, it has a front monocular virtual gimbal camera with 1920x1080 resolution, a wide field of view (Horizontal 80°, Vertical 120°), and supports night vision. It includes dual 75W high-brightness searchlights for clear vision during nighttime operations."

Is the HD580 easy to setup and fly right out of the box?

YES, typically our setup time is less than 30 minutes
